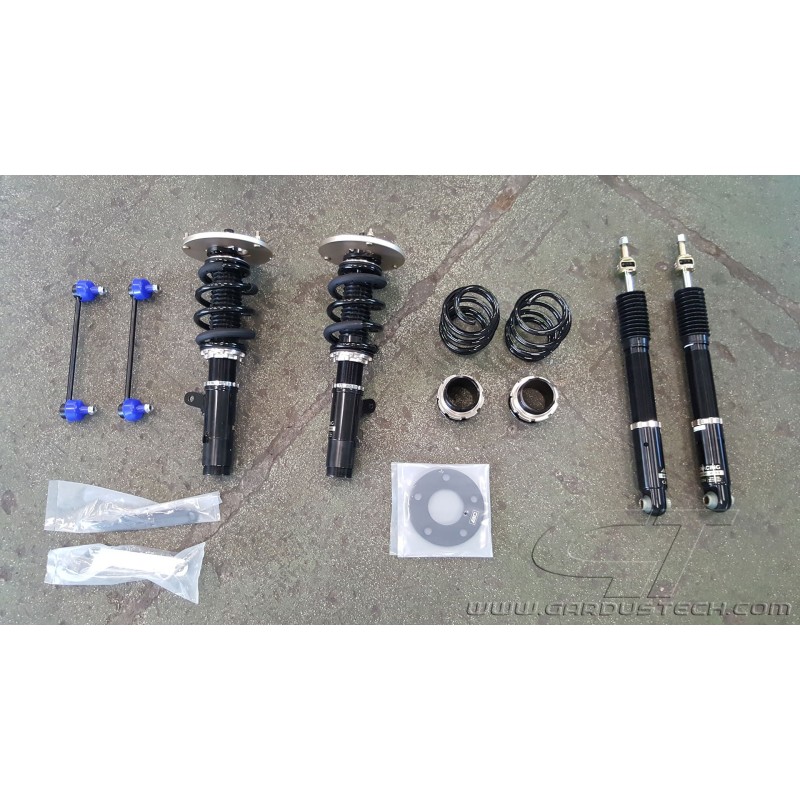

BC Racing BR Type RA for Mini F56 DCC coilover suspension kit

The standard kit has spring rates fron 5 kg/mm rear 5 kg/mm and it's recommended for fast road use.

For trackday use we recommend the 7/7 options, other available on request. Contact us for more information.

CAUTION: to find out if the car has electronic suspensions (DCC) is sufficient to check the top of the front dampers and observe if there's a wire going in. If present it's DCC.

• Monotube dampers, oil + pressurized nitrogen
• 30 way adjustable damping compression+rebound combined
• Front top mounts with adjustable camber plates on uniball
• Linear springs, standard rates 6 kg/mm front, 5 kg/mm rear, custom option available
• Adjustable spring platform
• Height adjustment via bottom mount to retain full damper travel
• Dust boot to protect damper seals
• Front sway bar drop links included
• Front 5mm black wheel spacers included for use with stock wheels
• Available for cars with and without electronic suspension DCC, coding or cheaters not required

The BR series coilovers use a large 46mm diameter piston in a 53mm diameter damper body to maximise oil capacity.
